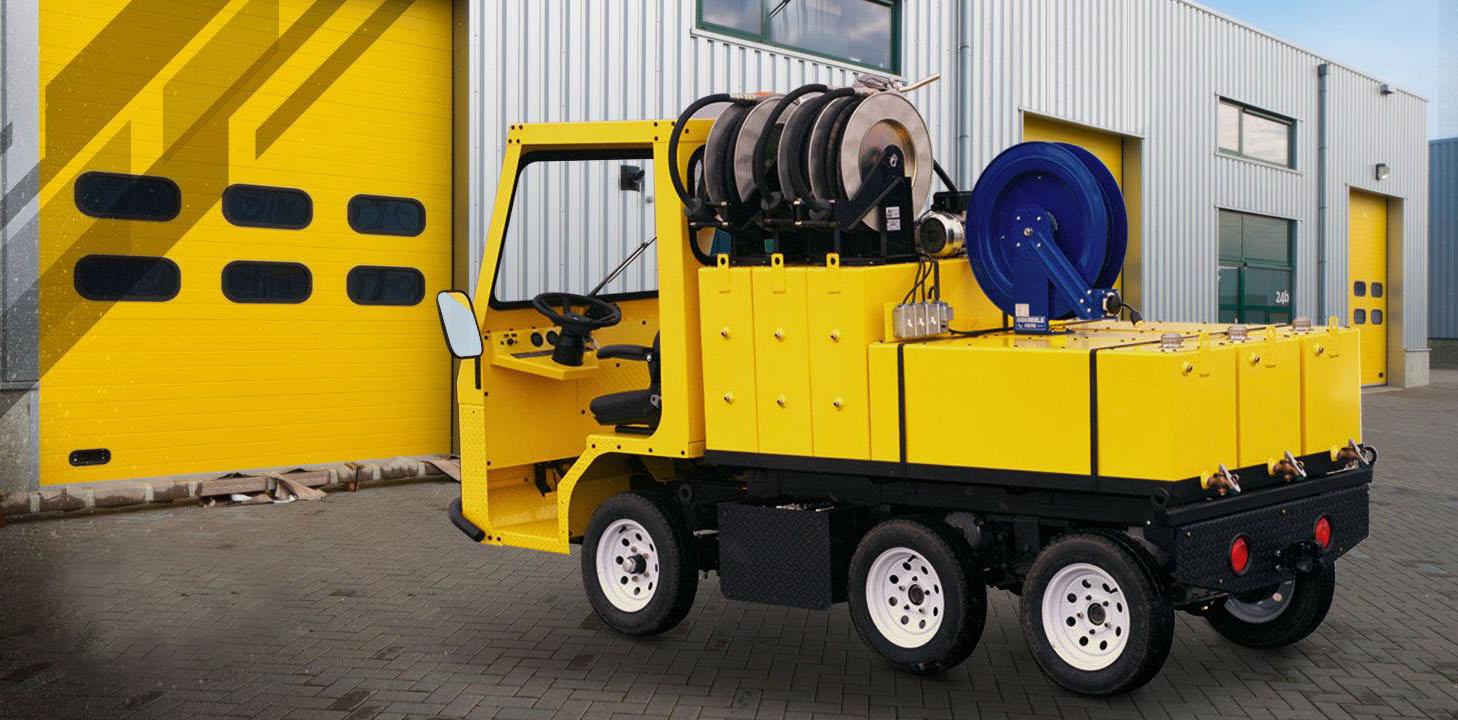

2026 Columbia Custom Platform Extreme Duty
2026 Columbia Custom Platform Extreme Duty
Location:Tampa, FL
or
Call (813)-621-4613
Description
Columbia’s Custom Platform offers dual drive axles and the single battery pack configurations for optimal balance in payload carrying capacity, maximum range and top-turning performance.
Also, the Speed Rail Attach System on our Custom Platform allows for hundreds of platform upfits! From application specific equipment to dump beds and van bodies, the Custom Platform is Built For Work!
Options: Cab Enclosure; Platform Upfit
Specifications
| Manufacturer | Columbia |
| Model | Custom Platform Extreme Duty |
| Year | 2026 |
| Condition | New |
| Stock Number | 9680115 |
| Series | Custom Platform |
| Height | 49 in |
| Width | 49 in |
| Length | 149 in |
| Wheel Base | 69 in (29 in between rear axles) |
| Bed/Deck Dimensions | 96 in L x 48 in W |
| Step Height | 11.5 in / 29.21 cm |
| Load Bed Height | 26.8 in / 68.07 cm |
| Ground Clearance | 6 in / 15.24 cm |
| Max Speed Forward | 13 mph |
| Turning Radius | Curb to curb - 372 in / 944.88 cm |
| Range | Up to 30 miles / 48.28 km |
| Vehicle Weight | 1,780 lb / 807.39 kg |
| Rated Capacity | 6,000 lb / 2721.55 kg |
| Towing Capacity | 6,000 lb / 2721.55 kg |
| Motor | Separately excited, NEMA class H temperature rated |
| Horsepower | Dual 17.3 hp / 12.72 kW |
| Batteries | Eight, 6-volt, 232 amp hour, 122 minute |
| Charger | Built-in, micro-processor control, fully sealed, anti-drive away interlock, 110-240 VAC, 50 / 60 HZ |
| Controller Type | Programmable, solid state, reduced speed reverse with diagnostic LED & calibrator interface |
| Controller Rating | 500 amp DC |
| Motor Braking Mode | Regenerative and pedal proportional braking with top speed limiting |
| Directional Control | Dash-mounted safety directional keyswitch |
| Drive Unit/Differential | Direct drive, oil bath, helical gears; drive ratio 16.77:1 |
| Passenger Capacity | Two |
| Seating | Adjustable bucket seats with arm rests |
| Body | 14 gauge structural steel smooth plate front body panels |
| Lighting | Dual recessed LED head, tail and brake lights |
| Accessories | Horn; hour meter; driver seat power interlock switch; single point battery watering system; steel bulkhead; battery discharge indicator; 48-V DC to 12-V DC converter; composite deck board with high-density polyethylene overlay |
| Frame | Structural steel channel rail style chassis |
| Steering | Hydraulic pump and piston manually operated |
| Brakes | Hydraulic brakes, front disc/rear drum, hand operated parking brake |
| Suspension | Semi-independent with leaf springs |
| Tires | 145/R12 radial pneumatic tires 21 in x 5.5 in x 12 in / 53.34 cm x 13.97 cm x 30.48 cm |
